Product Description
Intel Core i3 processor 2C/4T 3M Cache,2.00GHz
Equipped with super cooling system and fan,the performance of Intel Core i3 processor can be optimized to the extreme and without frequency drop,making sure to play the online world smoothly.
Expandable RAM
Installed with DDR3L 4GBX 2 Memory,the DDR frequency can up to 1600 MHz and the memory can be expand up to 16GB.With Intel HD Graphics 5500,the maximum frequency of the Graphics up to 850 MHz and improve the overall speed.
Support for Multiple Operating Systems
This powerful U500-H mini pc supports windows 10 pro. Besides,it can can support other OS like Linux and Chromium OS to meet different requirements.
Two Gigabits ports
U500-H mini pc comes with a wide range of application:digital signboard,home player,monitoring host,medical equipment and education.
Beside, 2* gigabits ports can expand its functions,like merge network to improve the speed, soft router,LAN transfer data and building NAS.
Fluent 4K Video Streaming
If you have a monitor at home that supports TYPE-C output , U500-H can turn on a PD. At the same time output 4K video to the display side. This allows you to run without having to connect to a separate power adapter. Greatly streamlined the desktop.
The Mini DP supports converter to DP or VGA,but doesn’t support converter to HDMI.
The USB-C supports converter to HDMI.
Upgradability
✔Add a M.2 2280 NGFF SSD
It is supported with the addition of up to 2TB,SATA3.0 6Gb/S and can make sure the faster & more stable storage.
✔Add a 2.5 inch SATA HDD
It can support 2.5 inch SATA HDD up to 2TB,SATA 3.0 6Gb/S to expand the storage.
✔Add a Micro SD card
Designed with a SD slot,you can insert a Micro SD card up to 128GB to expand the storage.
DC-in : 1*DC inPort, 1*viaUSB-C port
USB : 3* USB3.0 Port.1*USB-C Port
Audio Input : 3.5mm audiojack , MIC ,Type-Cheadset(not included)
Video Output : HDMI 1.4(4K@30Hz) , MiniDP(4K@60Hz) ,USB-C (4K@60Hz)
Audio Output : HDM1.4,MiniDP,3.5mm audiojack,USB-C headset(not included)

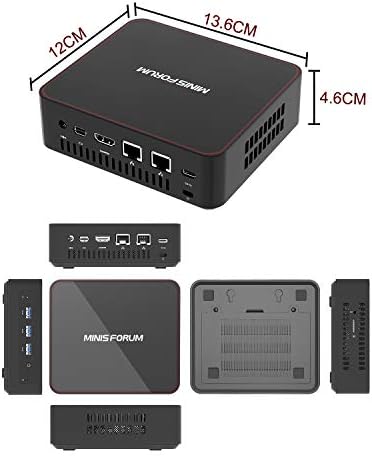

Button&Ports
Package
1x U500-H Mini PC 1x Power Adaptor 1x HDMI Cable
1x Mini DP Cable 1x Mounting bracket 1x User Manual
1
2
3
4
CPU
Intel Core i3-5005U Processor
Intel Celeron J3455 Processor
Intel Celeron J3160 Processor
Intel Celeron N4100 Processor
Intel Core i3-8145U Processor
Intel Pentium Gold 5405U Processor
RAM
8GB(expandable)
8GB
4GB
8GB
8GB
8GB
Hard Drive
128GB NGFF SSD
128GB NVMe SSD
128GB NVMe SSD
128GB NVMe SSD
256GB SSD
128GB
Base/Burst Frequency
2.00GHz/big core
1.5 GHz/ 2.3GHz
1.6 GHz/ 2.24GHz
1.1 GHz/ 2.4 GHz
3.9GHz
2.3 GHz
DIY SSD / HDD
M.2 NGFF 2280 SSD / 2.5″ HDD
M.2 NGFF 2242 SSD
M.2 NVMe 2280 SSD / 2.5″ HDD
M.2 NGFF 2280 SSD + M.2 NVMe 2280 SSD
NGFF M.2 2242 SSD + M.2 NVMe 2280 SSD
NGFF M.2 2242 SSD + M.2 NVMe 2280 SSD
PXE Boot / Wake on Lan
✓
✓
✓
✓
✓
✓
HDMI/USB
1* HDMI, 3* USB3.0, 1*USB-C, Mini DP
1* HDMI, 3* USB3.0, 1*USB-C, Mini DP
1* HDMI & VGA, 2* USB3.0, 2* USB2.0
2* HDMI,USB-C, 2* USB3.0, 2* USB2.0
HDMI 2.0/ MINI DP / USB-C 4K@60Hz,2x USB 3.0 ,2x USB 2.0
HDMI 2.0/ MINI DP / USB-C 4K@60Hz,2x USB 3.0 ,2x USB 2.0
✔Expandable RAM : Installed with 4G*2 DDR3L-1600 dual channel.Our U500-H designed 2*SODIMM slots and can expand up to 16GB.Plus with the Intel Core i3 CPU 2.0 GHz/s, brings more powerful performance and wonderful experience.
✔Full-featured Video Output ：Equipped with HDMI / MINI DP / USB-C output display,you can use it for multi-tasking operation while enjoy the 4K@60Hz home theater.The powerful USB-C port supports data transfer, Display and power without having to connect to a separate power adapter while the monitor is compatible with these functions also.
✔Two Gigabit Ethernet : Our U500-H has 2 Gigabit ports which greatly expands its function,like merging Network Speed,Soft Router,LAN Transfer Data and Build NAS.There are more functions as long as you can think of.
✔Multi OS : Preinstalling with Window 10 Pro,it has been activated and no need to enter a license key again. Besides,U500-H can support Linux and Chromium OS to meet your requirement.
✔Large Capacity : Designed with 128GB SSD,it can support M.2 NGFF 2280 SSD up to 2TB, 2.5 inch HDD up to 2TB and a SD card up to 128GB.
